1970 25¢ WDDO-001

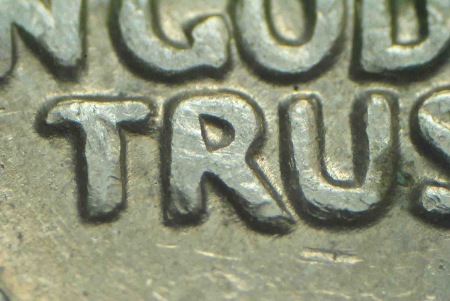

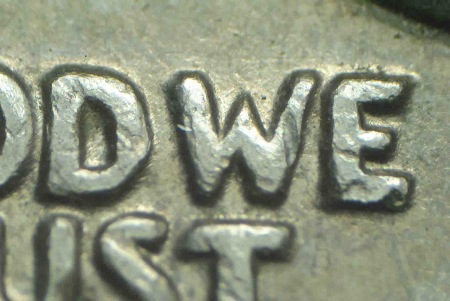

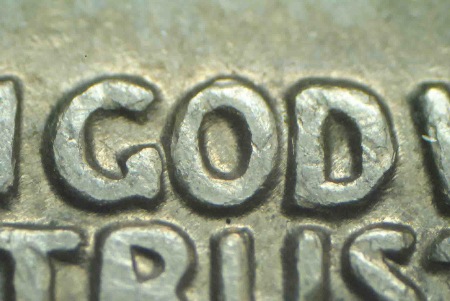

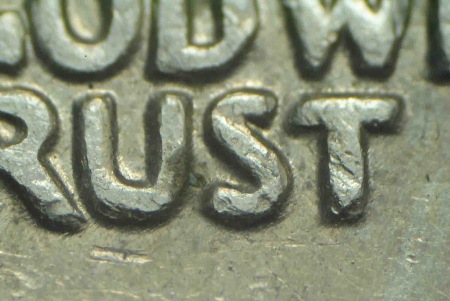

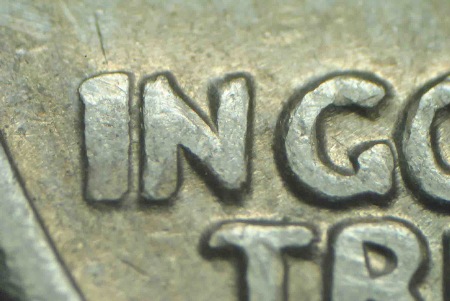

Description:  Extra thickness shows on the letters of IN GOD WE TRUST.  Notches show in the upper left corners of the letters.

Die Markers:  Obverse:  None significant.  Reverse:  None significant.

Submitted By:  Whaden Curtis

Cross References:  None known













1970 25¢ WMHR-001          Master Hub Doubling

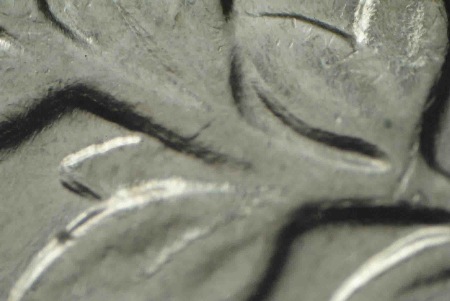

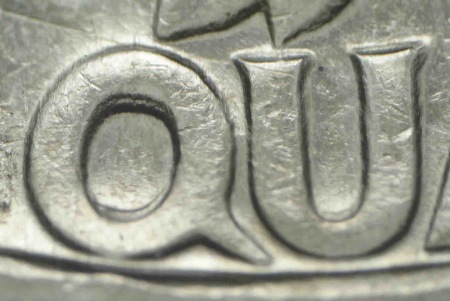

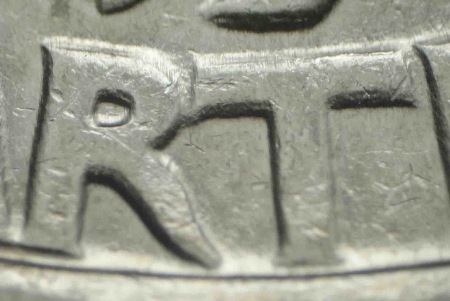

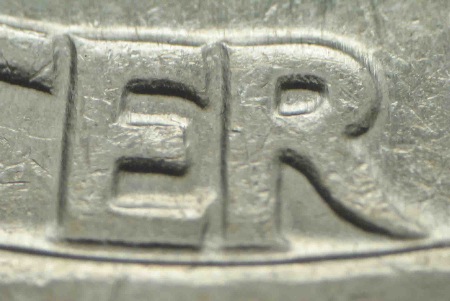

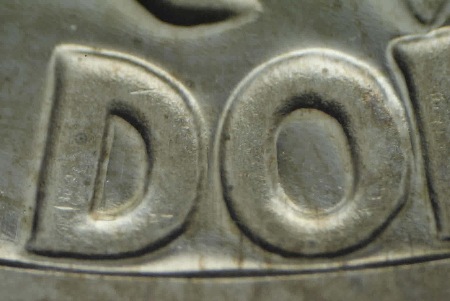

Description:  A spread towards the center shows on QUARTER DOLLAR and the lower wreath with all doubling decreasing in spread from left to right.

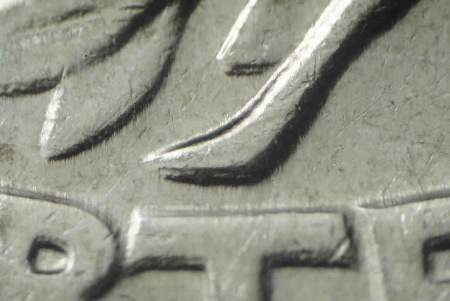

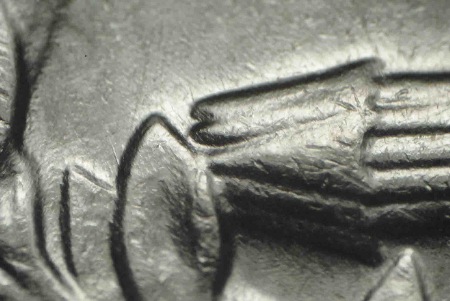

Die Markers:  Obverse:  Die markers will vary on the individual working dies affected.  Reverse:  The leave directly to the left of the arrowheads is pointed at the top.  Die markers will vary on the individual working dies affected.

Submitted By:  Various

Cross References:  CONECA: SD-1-R-II-C+VI

Comments:  Because this was a master hub it was intended to be used over a period of several years.  Working dies with the exact same doubling are known to exist for the years 1968 through 1974 from all three Mints including proof coins.  Differences in the appearance of the doubling will result from master hub wear, master die wear, working hub wear, working die wear, as well as coin wear.  A second similar doubled master hub exists for this time period with the main difference being the leave directly to the left of the arrowheads.  On the second doubled master hub that leave is rounded at the top.














1970 25¢ WMHR-002          Master Hub Doubling

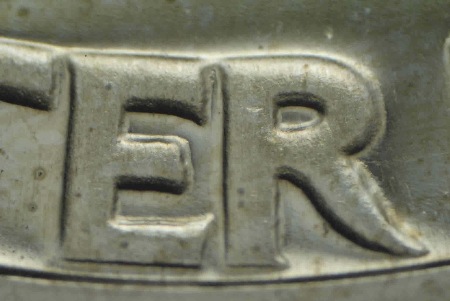

Description:  A spread towards the center shows on QUARTER DOLLAR and the lower wreath with all doubling decreasing in spread from left to right.

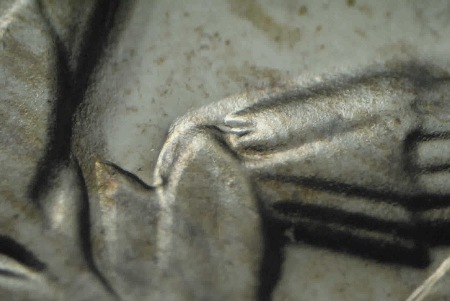

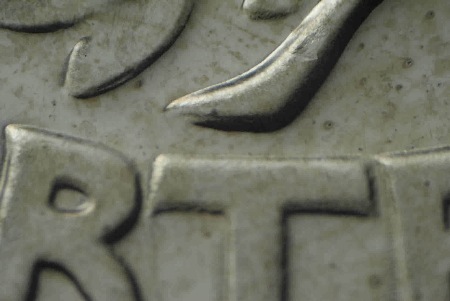

Die Markers:  Obverse:  Die markers will vary on the individual working dies affected.  Reverse:  The leave directly to the left of the arrowheads is rounded at the top.  Die markers will vary on the individual working dies affected.

Submitted By:  Various

Cross References:  CONECA: SD-2-R-II-C+VI

Comments:  Because this was a master hub it was intended to be used over a period of several years.  Working dies with the exact same doubling are known to exist for the years 1968 through 1970 from all three Mints including proof coins.  Differences in the appearance of the doubling will result from master hub wear, master die wear, working hub wear, working die wear, as well as coin wear.  A second similar doubled master hub exists for this time period with the main difference being the leave directly to the left of the arrowheads.  On the other doubled master hub that leave is pointed at the top.














1970 25¢ WDDR-001

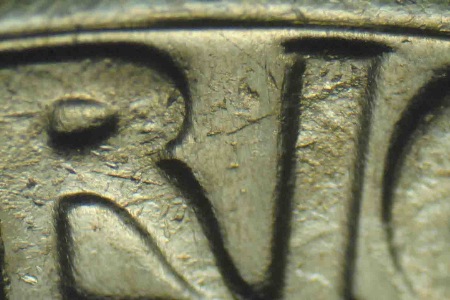

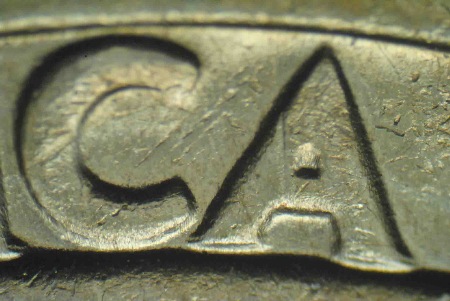

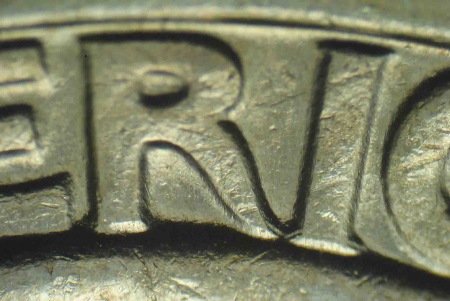

Description:  A very close spread towards the center shows on the lower letters of AMERICA.  Doubling on QUARTER DOLLAR and the wreath is from the doubled master hub listed as WMHR-001.

Die Markers:  Obverse:  None significant.  Reverse:  A small die gouge can be found to the left of the upper I in AMERICA.

Submitted By:  John A. Wexler

Cross References:  None known
