1948-D 50¢ WWHO-001          Doubled Working Hub

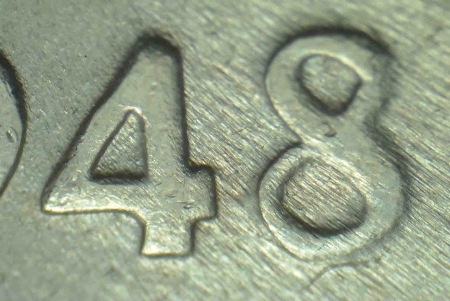

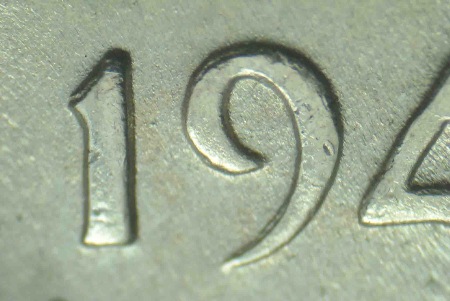

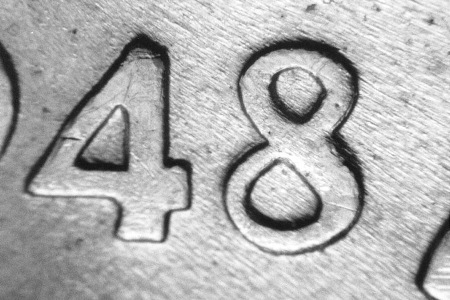

Description:  A close spread SE shows on the date while a close spread towards the center shows on IGWT and LIBERTY.

Die Markers:  Obverse:  The die markers will be different for each of the affected working dies.  Reverse:  The die markers will be different for each of the affected working dies.

Submitted By:  Various individuals

Cross References:  None known

Comments:  The same working hub doubling affected the obverse of the 1948 P-Mint half dollars.










1948-D 50¢ WDDO-001

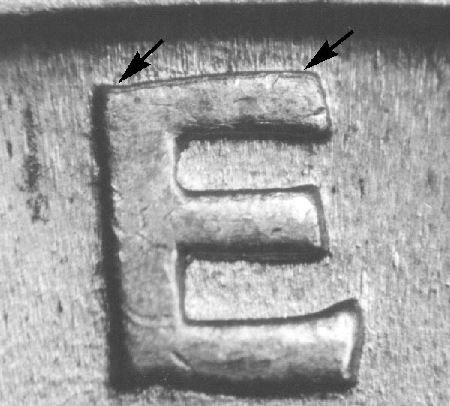

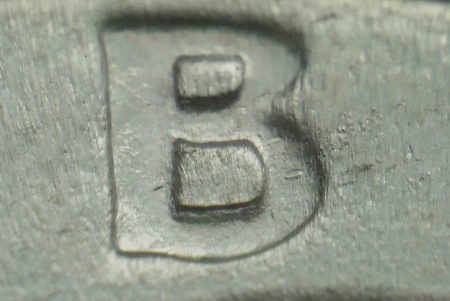

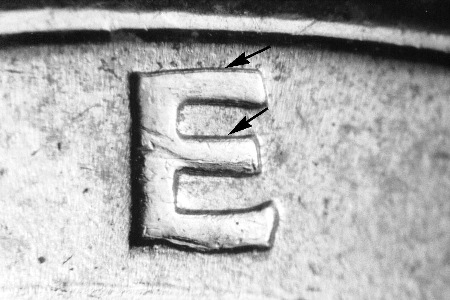

Description:  A Class II spread toward the center shows on LIBERTY.  An extremely close spread toward the center shows on IGWT and the date.

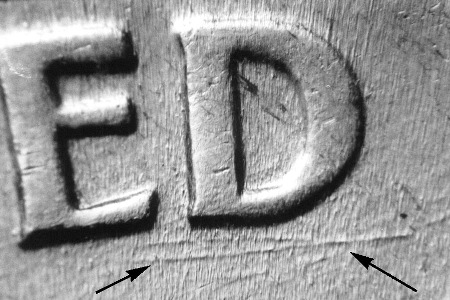

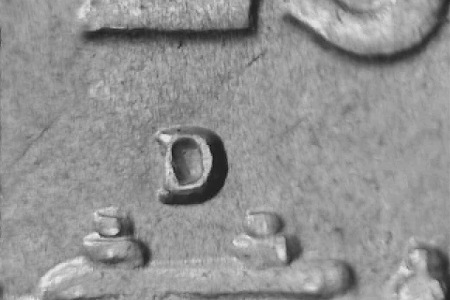

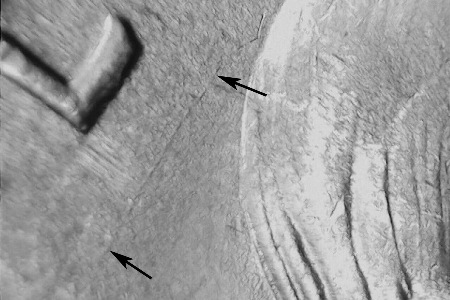

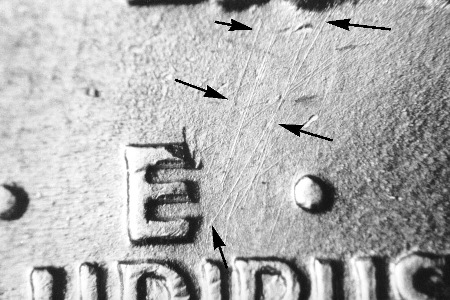

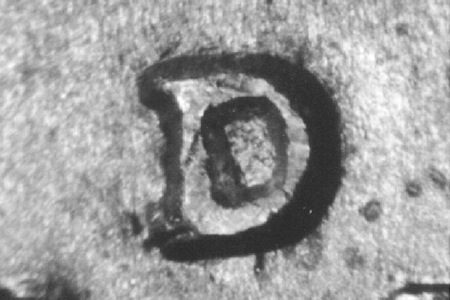

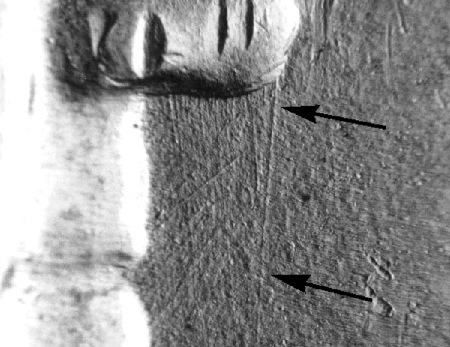

Die Markers:  Obverse:  Die scratch south from the tip of the nose.  Reverse: WRPM-001.  D/D Tilted (Rotated).  Series of NNE/SSW and NE/SW die scratches between the E of EPU and the right dot.  Two E/W die scratches under the D of UNITED which link together on the right.

Submitted By:  Stage A: George Wilkinson, Stage B: Brett Parrish

Cross References:  None known






















1948-D 50¢ WDDO-002

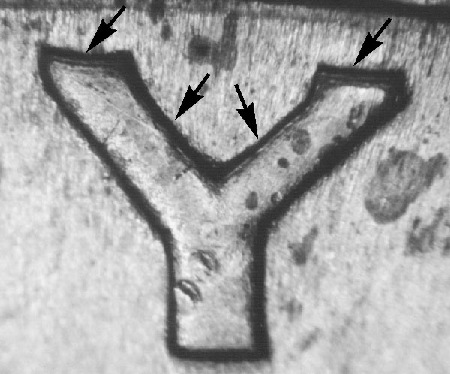

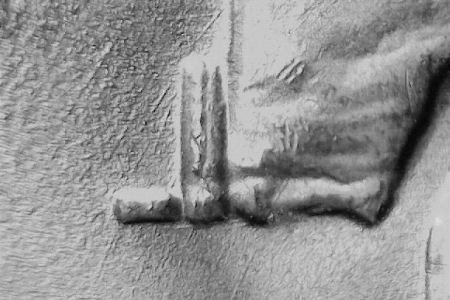

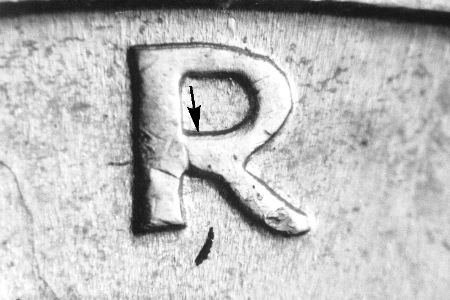

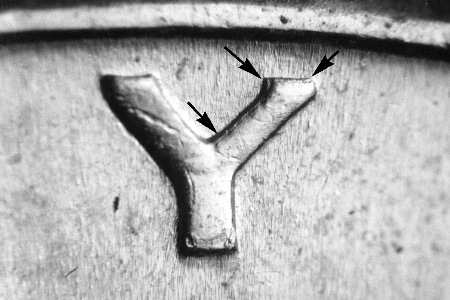

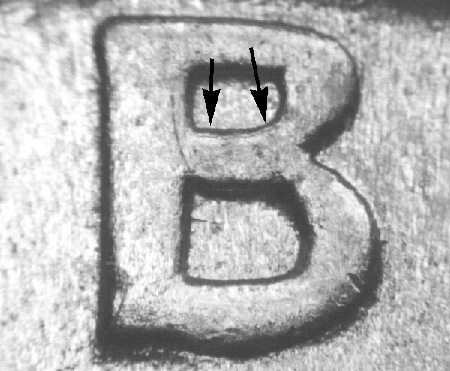

Description:  A Class II spread toward the center increases in strength to the right, shows doubling on BER of LIBERTY and IGWT.  Tripling shows on the TY of LIBERTY and the top of the head.

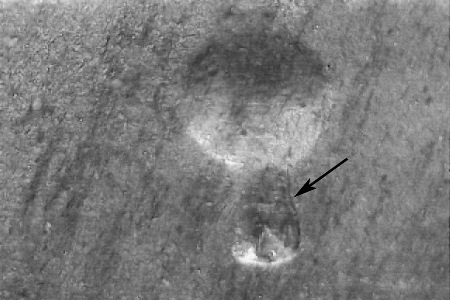

Die Markers:  Obverse:  Light NE/SW die scratch between the head and the E of LIBERTY.  Small die gouge in the field east and below center of the Y in LIBERTY.  Reverse:  WRPM-002.  D/D Tilted (Rotated).  Very short die gouge to the left and slightly below center of the bell hanger.  N/S die gouge in the field approximately centered between the H and A of HALF.

Submitted By:  Brian Ostro

Cross References:  None known


















1948-D 50¢ WDDO-003

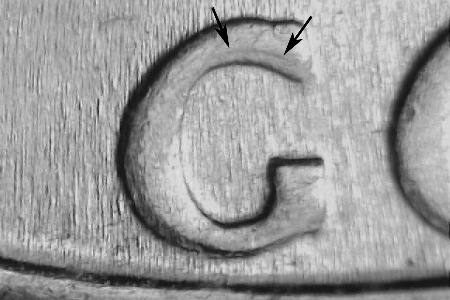

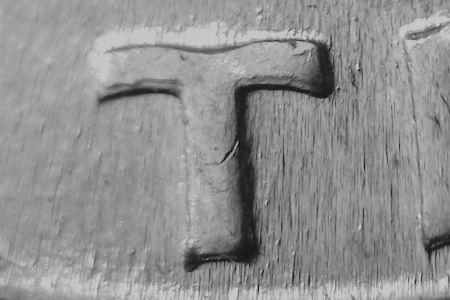

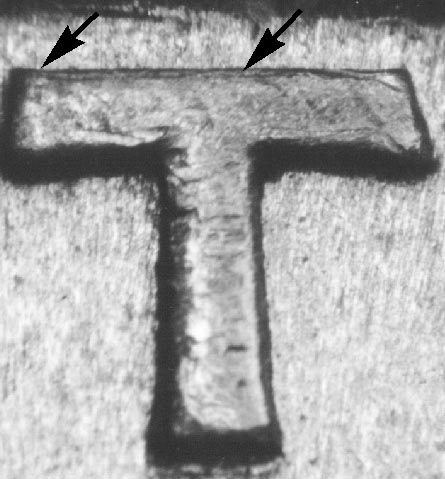

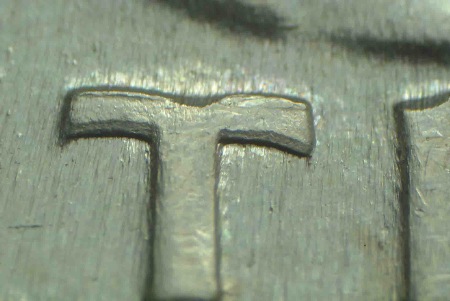

Description:  A spread toward the center shows light on the L of LIBERTY, GOD and the first T in TRUST.  Weaker doubling shows on some of the letters of GOD WE TRUST.

Die Markers:  Obverse:  Light NE/SW die scratch between the head and the L of LIBERTY.  Reverse:  The reverse has the doubling from WWHR-001.  E/W die scratches between the rim and the ED of UNITED.  Short N/S die scratch at the inside left center of the D in UNITED.

Submitted By:  Wayne Carson

Cross References:  None known



















1948-D 50¢ WWHR-001          Doubled Working Hub

Description:  A strong spread NW shows on IGWT, the dots, UNITED, HALF DOLLAR, and the right side of the bell clapper.

Die Markers:  Obverse:  The die markers will be different for each of the affected working dies.  Reverse:  The die markers will be different for each of the affected working dies.

Submitted By:  Various individuals

Cross References:  Flynn MD DDR-001, CONECA: 1-R-IV+VIII, 3-R-IV+VIII, 4-R-IV+VIII, 5-R-IV+VIII, 6-R-IV+VIII, 7-R-IV+VIII, Cherrypickers: FS-50-1948D-801

Comments:  CONECA has not listed this variety as a doubled working hub and has listed a number of the working dies as different varieties.  The same working hub doubling affected the reverse of the 1948 P-Mint half dollars.










1948-D 50¢ WDDR-001

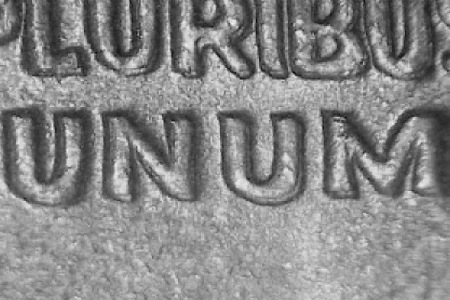

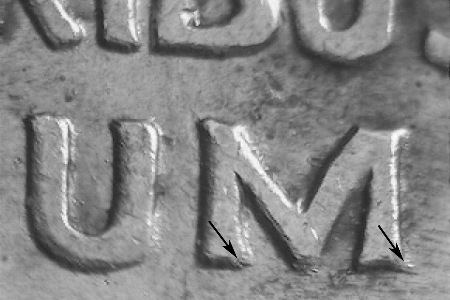

Description:  A Class II spread toward the center shows on EPU and the dots.  Strongest doubling shows on UNUM.

Die Markers:  Obverse:  None visible.  Reverse:  WRPM-003.  D/D Tilted (Rotated).  Small die gouge on the upper center of the right diagonal bar of the M in UNUM.

Submitted By:  David Mulberry

Cross References:  None known
