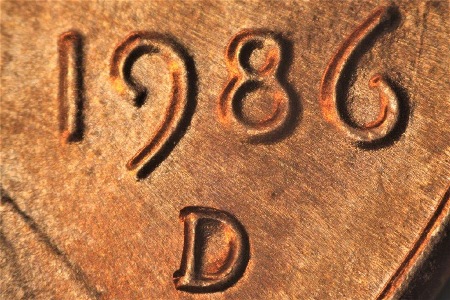

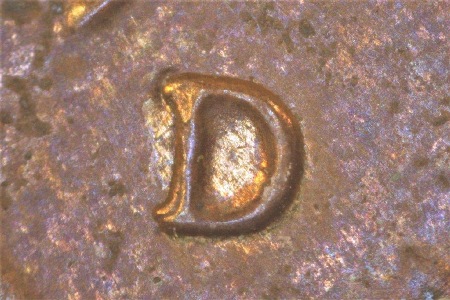

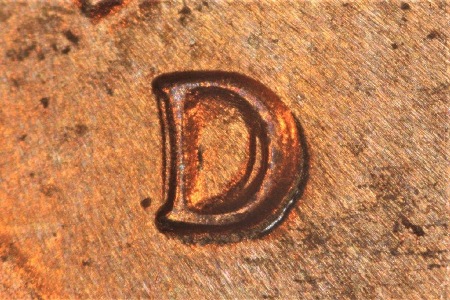

1986-D 1¢ Damaged Mint Mark Punch #1 Description: An apparent split lower serif is the result of a damaged mintmark punch. It is not a RPM.

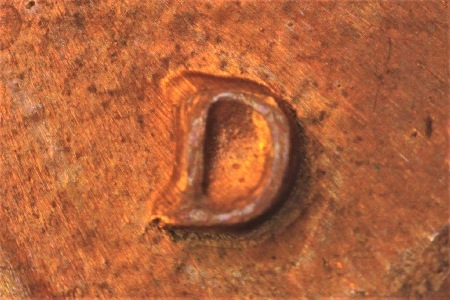

1986-D 1¢ WRPM-001

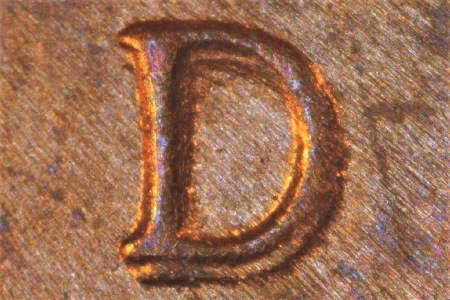

Description: D/D West
Die Markers:
Obverse:
Light die scratches run north
from the date. A light, NE-SW oriented die scratch shows inside the ear. A die scratch runs SE under Lincoln’s
nose. Die gouge left of first T in
TRUST.
Reverse:

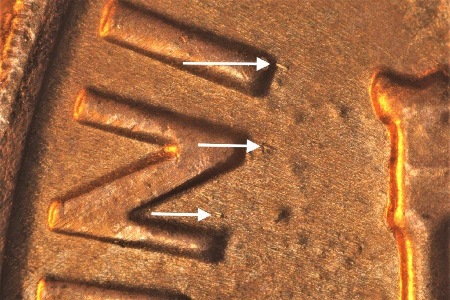

Die gouges right of and under

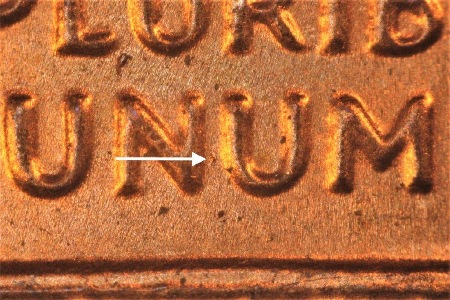

I in UNITED. Small die gouge (dot)
between NU in UNUM. Die gouge right of
right roof tip.
Submitted By: Jay Oen (photos
updated on coin from John Shields)
Cross References: CONECA: RPM#3, Coppercoins:
1986D-1MM-003

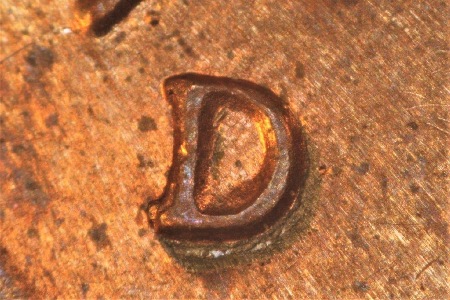

1986-D 1¢ WRPM-002

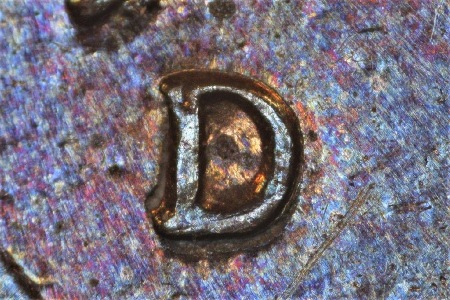

Description: D/D South
Die Markers:
Obverse:
Small die gouge below the 1
in the date.
Reverse:
Irregular die surface above D
in UNITED at rim. Die gouge left of
second A in AMERICA. A tiny die gouge shows in the roof above column 9.
Submitted By: Brian Allen (updated
photos on coin from Brian Ribar)
Cross References: None known
Comments: This die was originally
cross-referenced to CONECA’s RPM #6 which has been delisted. That cross-reference was incorrect. See WRPM-004 for more information.
1986-D 1¢ WRPM-003
Description: D/D West
Die Markers:
Obverse:
A
tiny die gouge shows

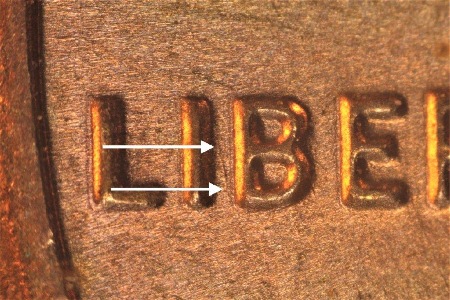

in front of Lincoln’s upper forehead. Light die scratches show between the
middle B and E in LIBERTY.
Reverse:

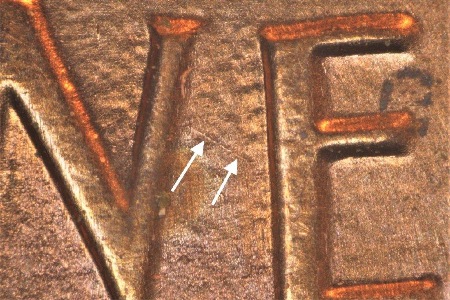

A light, NW-SE oriented die
scratch connects the middle N and E in ONE.
A die gouge extends from under the right side of the first U in
PLURIBUS. Die flow lines run from the left side of the Memorial building into
the UN in UNITED.
Submitted By: Ben Peters
Cross References: CONECA:
RPM#7, Coppercoins: 1986D-1MM-007 Comments: This die mint mark placement is higher
than WRPM-014.
1986-D 1¢ WRPM-004
Description: D/D South
Die Markers:
Obverse:

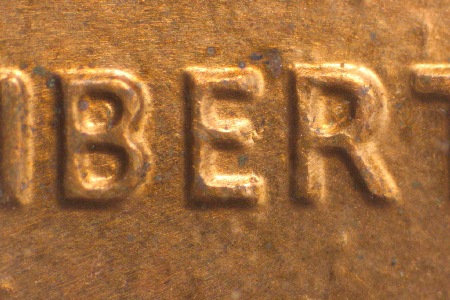

Small die gouge right of
middle horizontal bar of E in LIBERTY.
Reverse:

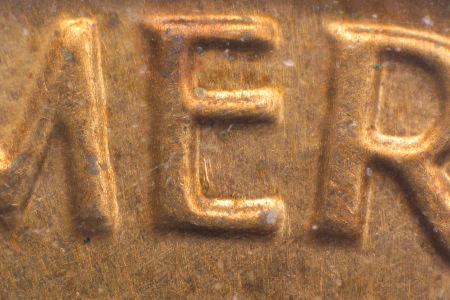

Small die gouge in lower E in
AMERICA.
Submitted By: John Shields (Originally discovered by Delma K. Romines) Cross References: CONECA:
RPM #13; Coppercoins: 1986D-1MM-013 Comments: This
variety was originally listed by CONECA as RPM #6, but was delisted. Additionally, the exact same coin was later
re-listed by CONECA as RPM #13, where it remains as the current listing. The original CONECA coin was submitted by
Delma K Romines; see carbon spots left of lower mint mark and above mint mark. Photos of the RPM #6 listing can be seen in The
RPM Book Second Edition: Lincoln Cents by James Wiles, PhD and the RPM #13
listing at VarietyVista.com. Overlay of
the below coin to the RPM #6 listing shows the coins to be identical in position, though the RPM
#13 listing remains at an angle and cannot be used for overlay.
1986-D 1¢ WRPM-005
Description: D/D South
Die Markers:
Obverse:
A light, mostly N-S oriented
die scratch shows between the IB in LIBERTY.

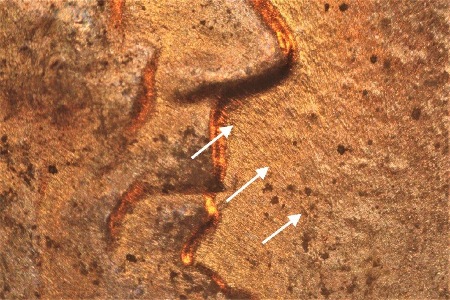

Parallel die scratches run NE from Lincoln’s eyebrow and nose. A die gouge shows in the field SE of the S in
TRUST. Die gouge in hair under D in
GOD. Heavy die scratches run mostly E-W behind
Lincoln’s head. Die gouge on shoulder
south of Y in LIBERTY.
Reverse:
Die gouge right of the upper F
in OF. Die gouge well below of second A
in AMERICA. Die gouge in upper bay
2.
Submitted By: Eric Axtell
Cross References:
CONECA: RPM #10, Coppercoins: 1986D-1MM-010
1986-D 1¢ WRPM-006
Description: D/D North
Die Markers:
Obverse:
None noted.
Reverse:

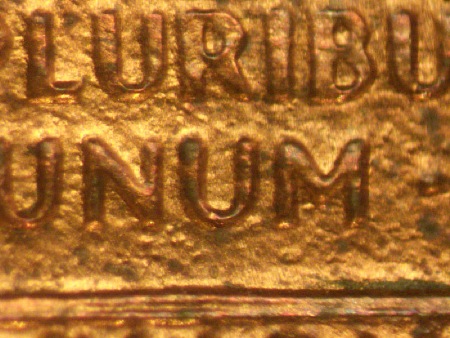

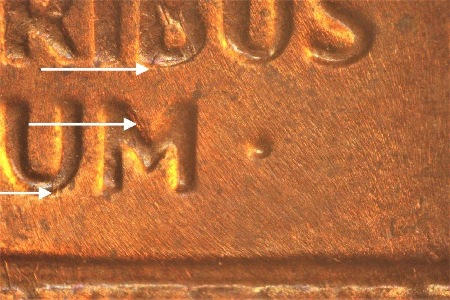

Light die scratches run NW to
SE between LUR and UNU in PLURIBUS UNUM.
Light die scratches are present in bay 5 and 6. Possible die gouge on upper T in CENT.
Submitted By: Brian Allen
Cross References: CONECA:
RPM #11; Coppercoins: 1986D-1MM-011
1986-D 1¢ WRPM-007
Description: D/D North
Die Markers:
Obverse:
Die gouge right of second T
in TRUST. Die gouge on vest SW of 1 in
the date. Light, SW-NE oriented die
scratches show under the D in GOD.
Light, mostly N-S oriented die scratches show behind Lincoln’s
head.
Reverse:

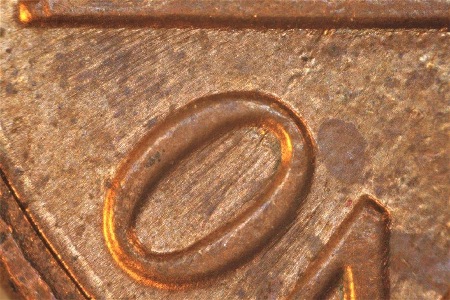

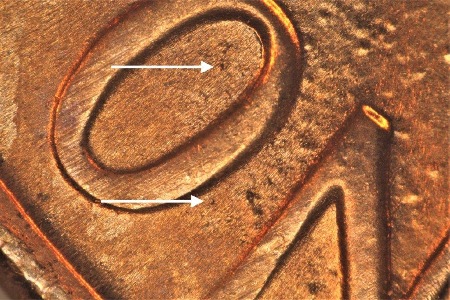

Die gouge inside upper and
right of the lower O in ONE. A die gouge
runs north from the upper right edge of the A of STATES. A series of die gouges show under the N and I
of UNITED.
Submitted By: Jay Oen
Cross References: CONECA:
RPM #2; Coppercoins: 1986D-1MM-002
Additional example to show doubling.
1986-D 1¢ WRPM-008
Description: D/D Tilted
Die Markers:
Obverse:

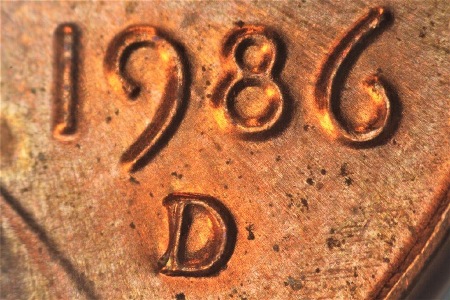

Two parallel die scratches
run SW from the lower left edge of the 6 in the date. A die gouge runs north from the upper left
side of the first T in TRUST.
Reverse:
Die gouge in the field, left
of the column 1 base. A short die gouge runs north from the upper right edge of
the O of ONE.
Submitted By: Doug Yost
Cross References: CONECA: RPM #12, Coppercoins: 1986D-1MM-012
1986-D 1¢ WRPM-009
Description: D/D Southwest
Die Markers:
Obverse:
Stage A: Die gouge northeast
of D in VDB.
Stage B: Doubling on mint
mark weak. Die gouge northeast of D in
VDB still visible. Light die gouge under
I in IN.
Reverse:
Stage A: Die gouge in lower bay
1. Two die gouges above D in UNITED at
rim.
Stage B: Die gouges from
Stage A still visible. Die gouge under E
in STATES.
Submitted By: Stage A: Daniel
Griffin, Stage B: John Shields
Cross References: None known
Comments: This die was originally
listed by CONECA as RPM #5, but has since been delisted.
Stage A:
Stage B:
1986-D 1¢ WRPM-010
Description: D/D West
Die Markers:
Obverse:
Stage A: E/W die scratch runs through
the upper opening of the E in LIBERTY.
Die gouge under U in TRUST. Die
gouges left of and well south of I in LIBERTY.
Stage B: All Stage A markers present
but weak. Die gouge behind Lincoln’s
head. Die gouges in vest west of the
lower mint mark.
Reverse:

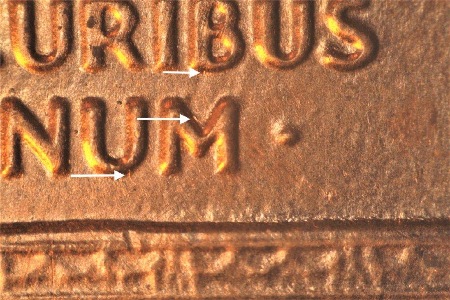

Stage A: A series of E-W oriented die
gouges show inside the rim above OF and the last S in STATES. Three parallel
die scratches run NE from the tip of the last A in AMERICA. A short die scratch
runs from the rim NE of the last A in AMERICA. A die gouge shows along the
upper edge of the left diagonal crossbar of the M in UNUM. A tiny die gouge
shows below the B in PLURIBUS. A die gouge runs south from the lower right
curve of the U in UNUM. Two die gouges show above the right memorial roof.
Stage B: Only the die gouges above
right roof and through the motto are still visible from Stage A markers. A large
die gouge shows in the lower opening of the C in AMERICA.
Submitted By: Stage A: Daniel
Griffin, Stage B: Brian Ribar
Cross References: CONECA:
RPM #8; Coppercoins: 1986D-1MM-008 and 1986D-1MM-018 Stage A:
Stage B:
1986-D 1¢ WRPM-011 Description: D/D/D North and South
Die Markers:
Obverse:
Stage A: Die scratch from the bottom
of the W in WE traveling E by S to under the first T in TRUST.
Stage B: Die scratch under WE still
present.
Reverse:
Stage A: Short N/S die scratch
centered between the N and T of CENT.

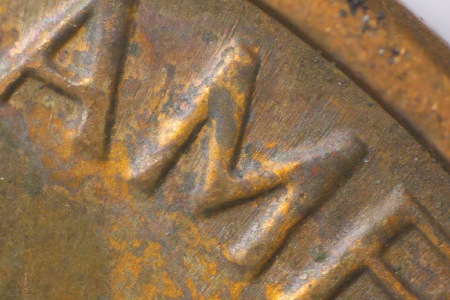

Heavy die flow lines upper left side of M in AMERICA.
Stage B: All stage A markers present
but weak. Prominent die flow lines show
inside the R, and above the left side of I of AMERICA.
Submitted By: Stage A: John Shields,
Stage B: Jay Oen
Cross References: Coppercoins:
1986D-1MM-020 Comments: This die was originally listed by CONECA as RPM #4, but has since been delisted. Stage A:
Stage B:
1986-D 1¢ WRPM-012
Description: D/D West
Die Markers:
Obverse:

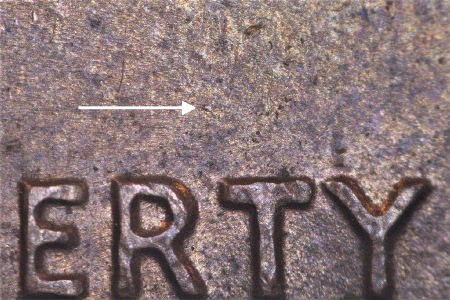

Small die gouge (dot) shows
above the RT in LIBERTY. A small die
gouge shows along the central lower edge of the E in WE. Die gouge in vest left
of lower date.
Reverse:
Die gouge under the right
side of the second A in AMERICA. A die
gouge along the left edge of the vertical crossbar of the T in UNITED. Die gouge under column 1 on the memorial base
just above the bushes.
Submitted By: John
Conway (Updated photos on a coin from John Shields) Cross References:
CONECA: RPM #9; Coppercoins: 1986D-1MM-009
Additional example to show doubling.
1986-D 1¢ WRPM-013
Description: D/D South
Die Markers:
Obverse:
Stage A: RPM strong. A weak die gouge shows in the field SW of the tail of the
9 in the date.
Stage B: RPM weaker. Die gouge in field SW of 9 in date weakly visible.
Reverse:
Stage A: Die gouge to the right of the G
in FG. A die gouge shows in the field south of the first S in STATES.
Stage B: A short, vertical die crack shows on upper column 2. Die gouge to
right of G in FG much weaker. Die gouge south of the first S in STATES weak,
but visible.
Submitted By: Stage A: Ben Peters,
Stage B: John Bordner
Cross References: CONECA:
RPM#1; Coppercoins: 1986D-1MM-001 Stage A:
Stage B:
1986-D 1¢ WRPM-014
Description: D/D West
Die Markers:
Obverse:
Stage A: Short die scratch runs SW
from under the chin. Small die gouge
just under bowtie adjacent to the vest.
Stage B: Die gouge under bowtie still
present. Die scratch under chin no
longer visible.
Reverse:
Stage A: A series of die gouges show
to the right of the lower last A in AMERICA.
Die gouge above left memorial base.
Stage B: New reverse die. Heavy die flow lines show inside and right of
the O in ONE. Small die gouge left of
upper F in FG. Die scratch runs NNE
inside lower bay 11.
Submitted By: Stage A: Lloyd Hanson,
Stage B: John Shields
Cross References: None known Comment: This die mint mark placement is lower
than WRPM-003.
Stage A:
Stage B:
1986-D 1¢ WRPM-015
Description: D/D Tilted
Die Markers:
Obverse:
Stage A: Two small die gouges
under left side of E in WE in hair.
Light die scratch through UST in TRUST.
Stage B: Die gouges under WE
still visible. Die scratch through TRUST worn away. Two tiny die gouges show under
the G and D in GOD. A strong die gouge shows
above the 6 in the date.
Reverse:
Stage A: Die gouges right of
and under R in AMERICA. A strong die gouge shows on the base of column 11.
Stage B: New reverse
die. A small die gouge shows under the
right arm of the last A in AMERICA. Die
gouge under column 12 on memorial base.
Die gouge right of U in UNITED.
Submitted By: Stage A: Daniel
Griffin, Stage B: Brian Ribar
Cross References: None known Comment: This die mint mark placement is higher
and not as strong as WRPM-008. Additionally, the Stage A coin had an unfortunate hit on the upper serif obstructing the doubling.
Stage A:
Stage B:
1986-D 1¢ WRPM-016
Description: D/D Tilted
Die Markers:
Obverse:
Stage A: Die gouge under E in
LIBERTY. A fine N-S oriented die scratch runs through the upper opening in the
E of WE.
Stage B: Die gouge under E in
LIBERTY still present. Die scratch

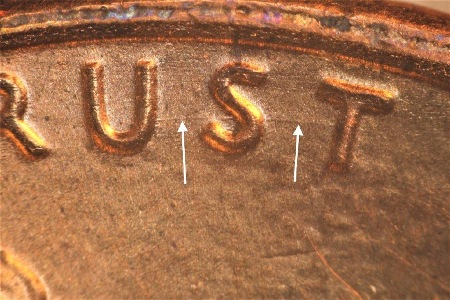

through upper E in WE still visible. Die gouge left of S in TRUST. Die gouge on lower shoulder fold at 6
o’clock.
Reverse:

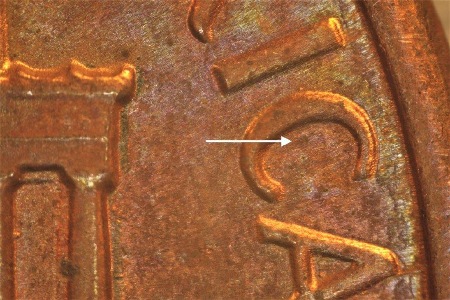

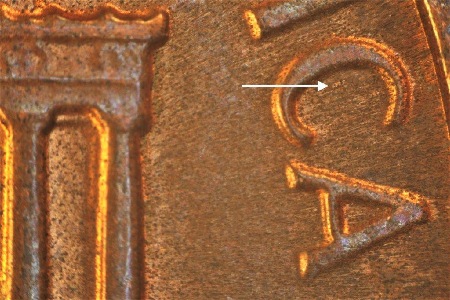

Stage A: A die gouge shows
inside the opening of the C in AMERICA.
Stage B: Die gouge inside the
opening of the C in AMERICA still faintly present. Die gouge right of lower T in CENT.
Submitted By: Stage A: Brian Ribar,
Stage B: John Shields
Cross References: None known Stage A:
Stage B:
1986-D 1¢ WRPM-017
Description: D/D Southeast
Die Markers:
Obverse:
Die gouge centered between the
upper E in WE and T in TRUST. A pair of

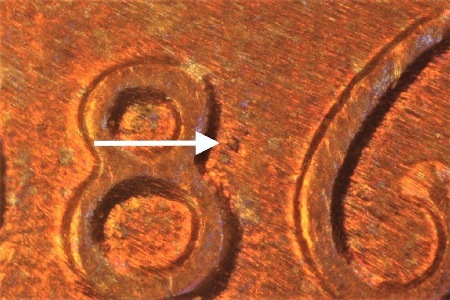

die gouges show in the field well east of the eyebrow. A die gouge shows to the
right of the upper 8 in the date.
Reverse:
A small die gouge shows
between the lower O and N in ONE. A die
scratch runs NNW from the left side of column 12 into upper bay 11.
Submitted By: Brian Ribar
Cross References: None known
1986-D 1¢ WRPM-018
Description: D/D Southwest
Die Markers:
Obverse:
Light die scratches run north
to south through and left of date and behind Lincoln’s neck.
Reverse:
A light die scratch runs NE
to SW in lower memorial bay 11. A die gouge
shows in the field above the left memorial base, west of the top of stair one.
A small die gouge (dot) shows in the lower center of bay 1.
Submitted By: John Shields
Cross References: None known
| ||
