1970-D 25¢ WDDO-001          “Best Of” Variety

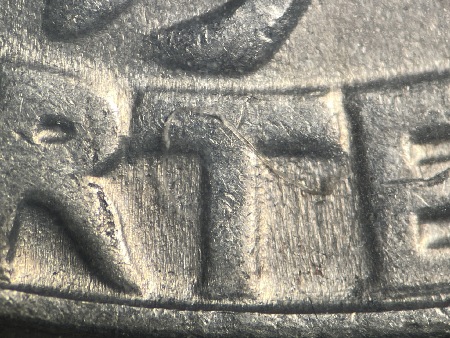

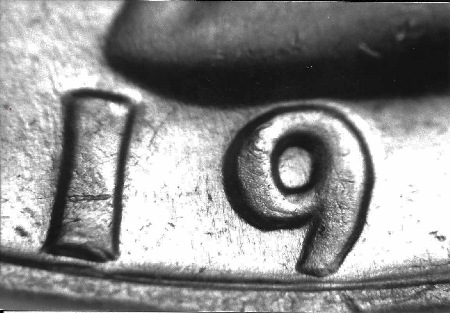

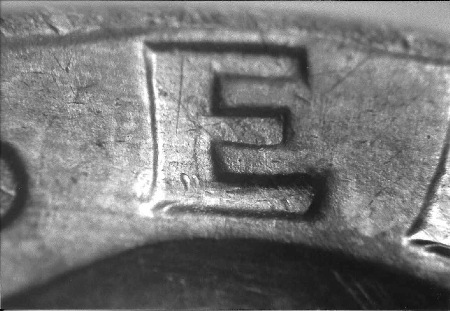

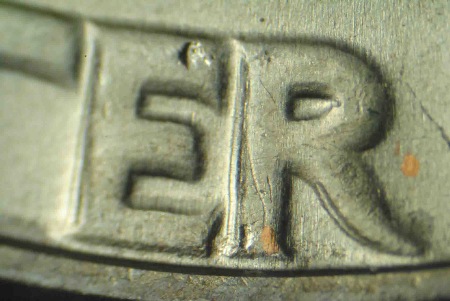

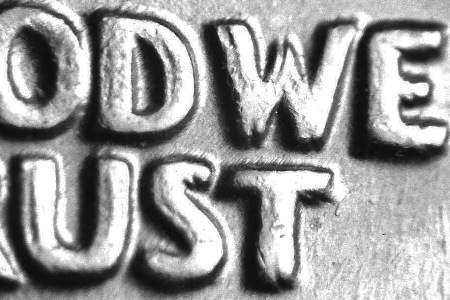

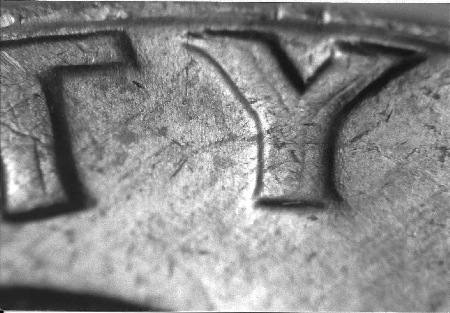

Description:  A very strong CCW spread from a pivot at about 10:00 shows on IGWT, the date, the designer’s initials, the lower queue, and the ERTY in LIBERTY.

Die Markers:  Obverse:  A diagonal die gouge can be found in the field well north of the N of IN.  Reverse:  A die crack runs down the eagle’s right wing.

Submitted By:  Jim Lafferty

Cross References:  CONECA: 1-O-V, Cherrypickers: FS-25-1970D-101 (027.3)








1970-D 25¢ WDDO-002          “Best Of” Variety

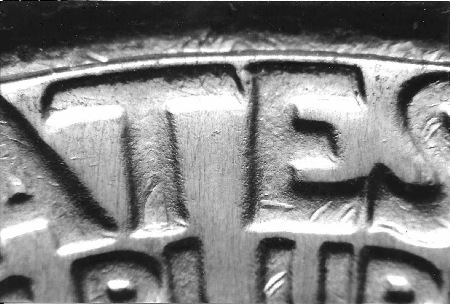

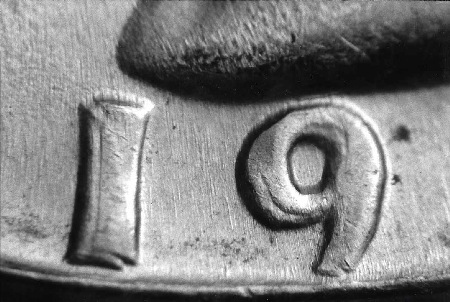

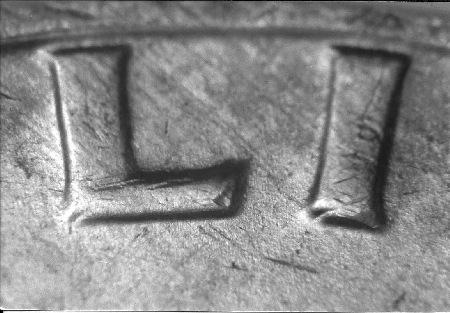

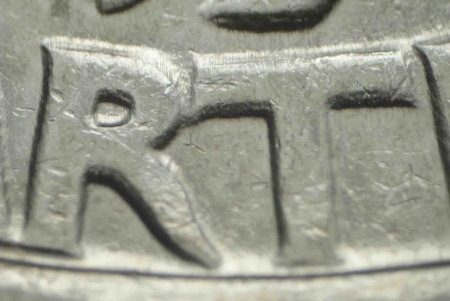

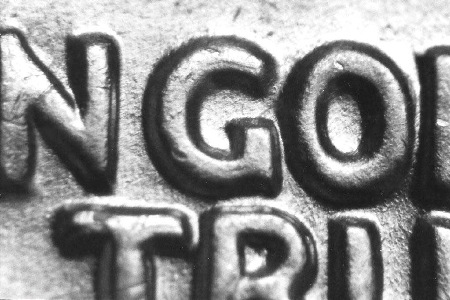

Description:  A very strong CCW spread from a pivot at about 9:00 shows on IN and TRUST, the date, the designer’s initials, the lower queue, and LIBERTY.

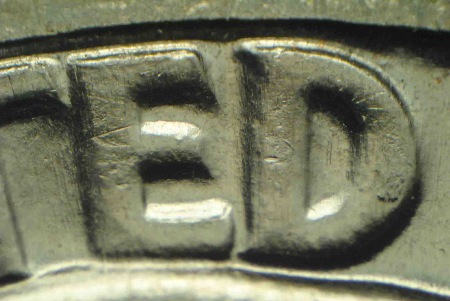

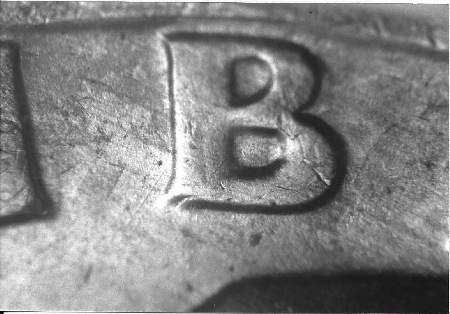

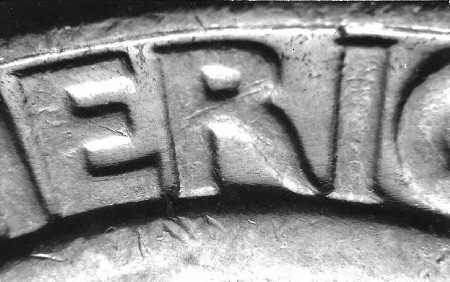

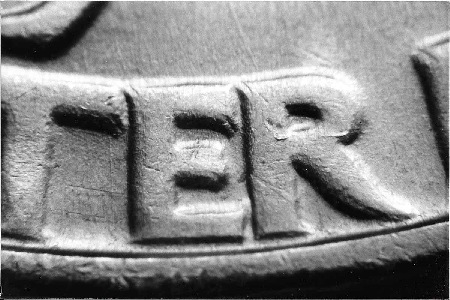

Die Markers:  Obverse:   A die scratch runs SW from the lower left of the B in LIBERTY.  A die scratch runs SW/NE to the left of the L in LIBERTY.  Reverse:  A die scratch runs north from the lower right of the R in QUARTER.  A die scratch runs ESE from the center of the E to the D in UNITED.

Submitted By:  Ron Pope

Cross References:  CONECA: 2-O-I, Cherrypickers: FS-25-1970D-102











1970-D 25¢ WMHR-001          Master Hub Doubling

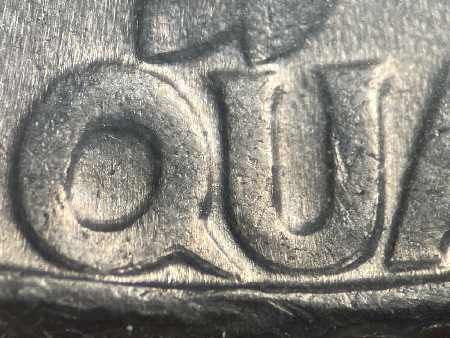

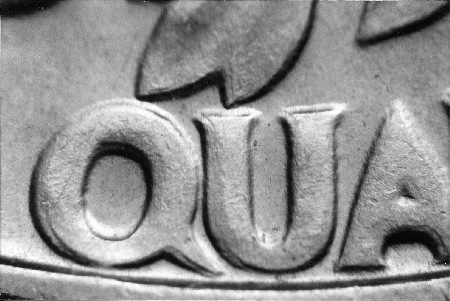

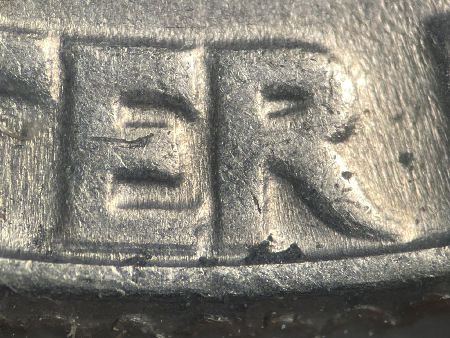

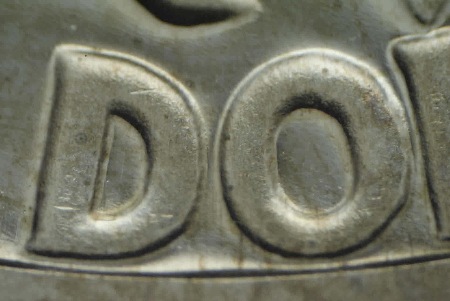

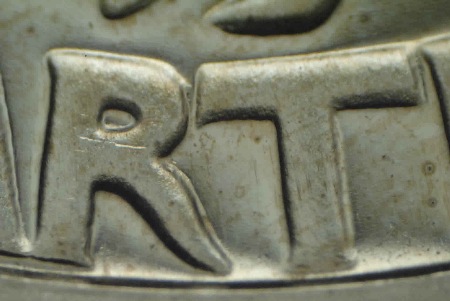

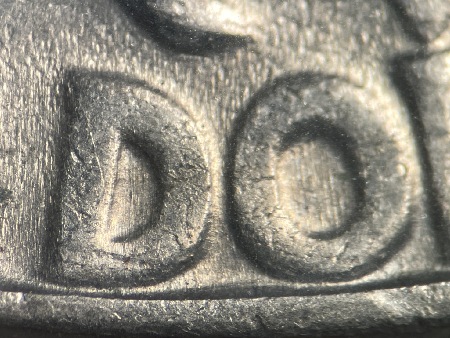

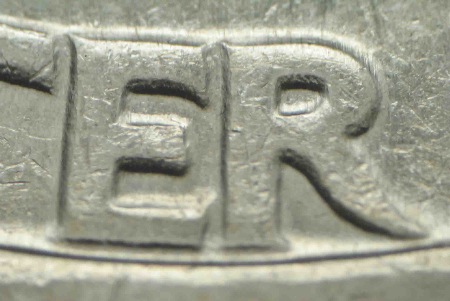

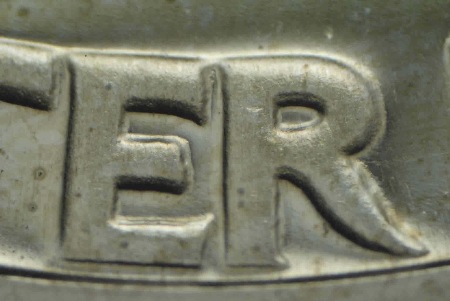

Description:  A spread towards the center shows on QUARTER DOLLAR and the lower wreath with all doubling decreasing in spread from left to right.

Die Markers:  Obverse:  Die markers will vary on the individual working dies affected.  Reverse:  The leave directly to the left of the arrowheads is pointed at the top.  Die markers will vary on the individual working dies affected.

Submitted By:  Various

Cross References:  CONECA: SD-1-R-II-C+VI

Comments:  Because this was a master hub it was intended to be used over a period of several years.  Working dies with the exact same doubling are known to exist for the years 1968 through 1972 from all three Mints including proof coins.  Differences in the appearance of the doubling will result from master hub wear, master die wear, working hub wear, working die wear, as well as coin wear.  A second similar doubled master hub exists for this time period with the main difference being the leave directly to the left of the arrowheads.  On the second doubled master hub that leave is rounded at the top.









1970-D 25¢ WMHR-002          Master Hub Doubling

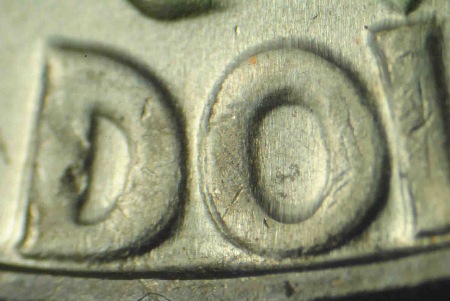

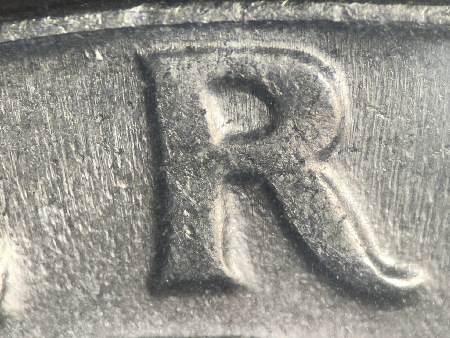

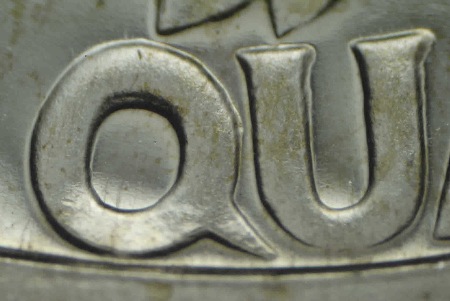

Description:  A spread towards the center shows on QUARTER DOLLAR and the lower wreath with all doubling decreasing in spread from left to right.

Die Markers:  Obverse:  Die markers will vary on the individual working dies affected.  Reverse:  The leave directly to the left of the arrowheads is rounded at the top.  Die markers will vary on the individual working dies affected.

Submitted By:  Various

Cross References:  CONECA: SD-2-R-II-C+VI

Comments:  Because this was a master hub it was intended to be used over a period of several years.  Working dies with the exact same doubling are known to exist for the years 1968 through 1970 from all three Mints including proof coins.  Differences in the appearance of the doubling will result from master hub wear, master die wear, working hub wear, working die wear, as well as coin wear.  A second similar doubled master hub exists for this time period with the main difference being the leave directly to the left of the arrowheads.  On the other doubled master hub that leave is pointed at the top.









1970-D 25¢ WDDR-001          “Best Of” Variety

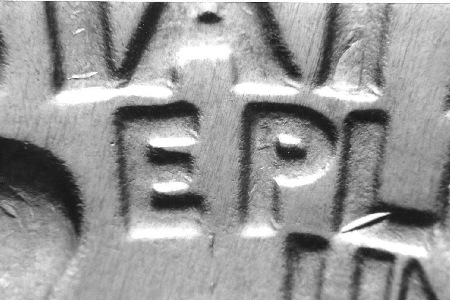

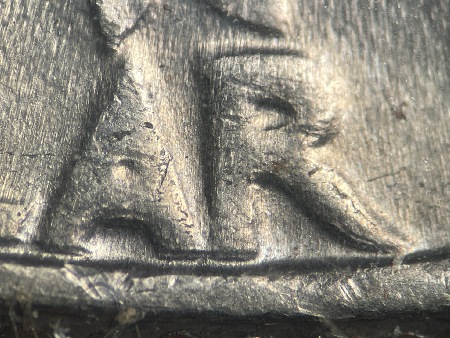

Description:  A Class I CCW spread shows on USA, EPU, QUARTER DOLLAR, inside the eagle’s right wing, and on some of the lower leaves.  The spread is strongest between 7:00 and 8:00 while weakest between 1:00 and 2:00.

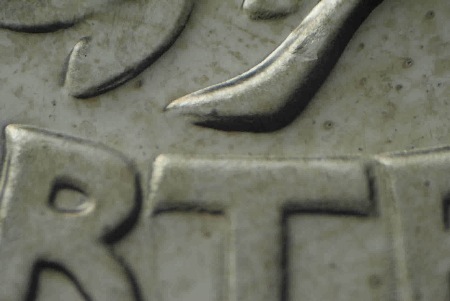

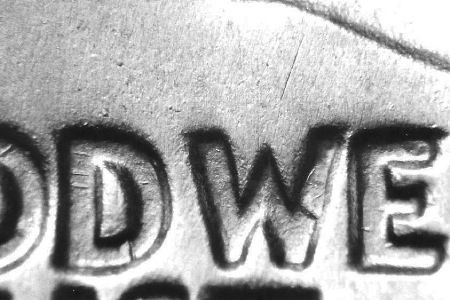

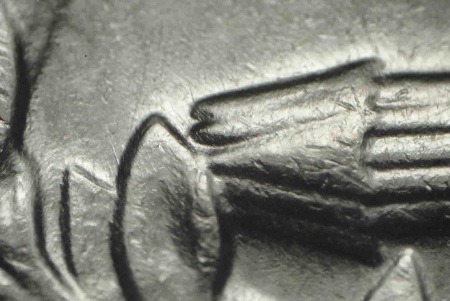

Die Markers:  Obverse:   A short die scratch runs SSW/NNE above the W in WE.  Reverse:  A short die scratch curves north from the back of the eagle’s head.

Submitted By:  Gary Wagnon

Cross References:  CONECA: 1-R-III+V, Cherrypickers: FS-25-1970D-801 (Removed in 6th Edition)

Comments:  This variety can be found in 1970 Mint Sets.










1970-D 25¢ WDDR-002          “Best Of” Variety

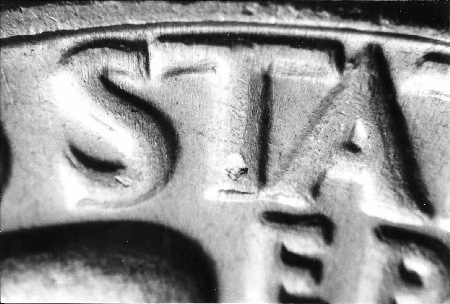

Description:  A Class I CCW spread shows on USA, EPU, QUARTER DOLLAR, inside the eagle’s wings, and on the wreath.

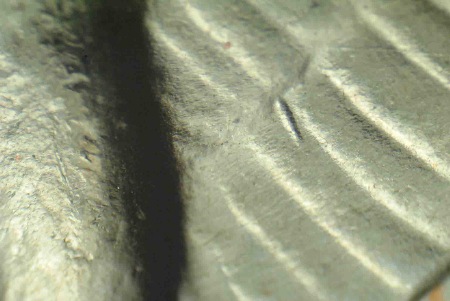

Die Markers:  Obverse:   A die scratch runs SE from the lower right of the R in TRUST.  Reverse:  A die scratch runs south from the lower bar of the F in OF.

Submitted By:  Gary Wagnon

Cross References:  CONECA: 2-R-III+I, Cherrypickers: FS-25-1970D-802 (Removed in 6th Edition)

Comments:  This variety can be found in 1970 Mint Sets.












1970-D 25¢ WDDR-003

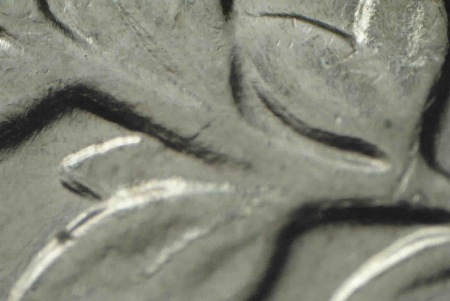

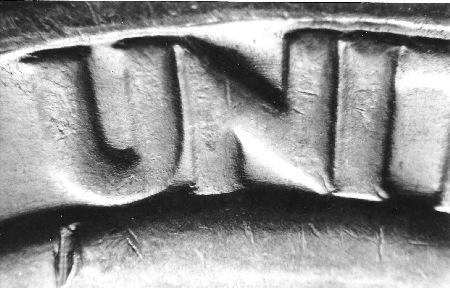

Description:  A CW spread from a pivot at about 1:00 shows on UNITED, AMERICA, and QUARTER DOLLAR.  A spread towards the center of the wreath and QUARTER DOLLAR is from the doubled master hub listed as WMHR-001.

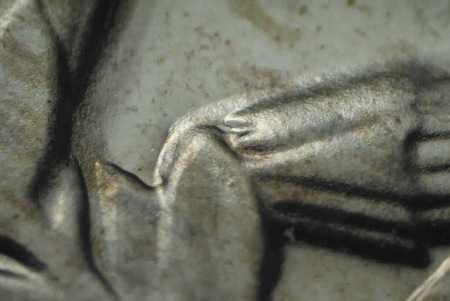

Die Markers:  Obverse:   None significant.  Reverse:  A strong die gouge runs NNW/SSE to the right of the eagle’s left leg.  A small die gouge can be found to the left of the U in UNITED.

Submitted By:  John A. Wexler

Cross References:  None known











1970-D 25¢ WDDR-004

Description: A CW spread shows on USA, EPU, and QUARTER DOLLAR.

Die Markers: Obverse: None significant. Reverse: None significant.

Submitted By: Rich Golden

Cross References: None known

PHOTOS NEEDED



1970-D 25¢ WDDR-005

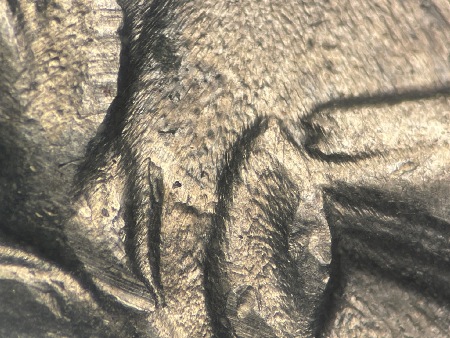

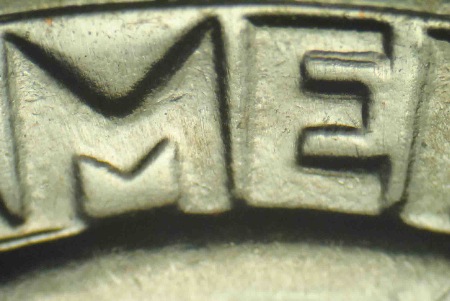

Description: Type F over Type G reverse (WMHR-001 over WMHR-002). Moderate spread towards the center shows on QUARTER DOLLAR, the branches, and slightly on UNITED and AMERICA.

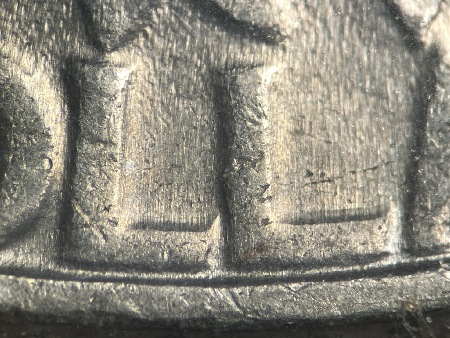

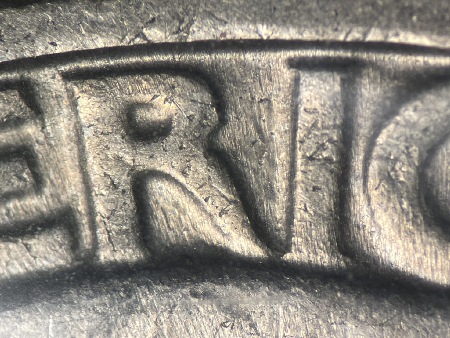

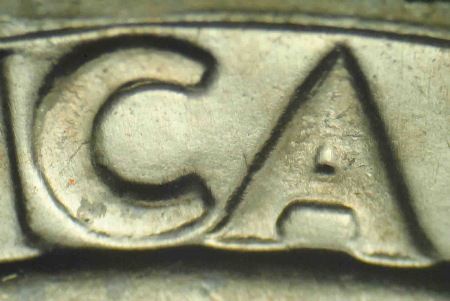

Die Markers: Obverse: Two die gouges left of the top of the R in LIBERTY. Small die gouge above the mintmark D. Reverse: Die gouge right of the last A in AMERICA. Die gouge right of the E in AMERICA.

Submitted By: John A. Wexler

Cross References: None known
